UL3132 14AWG Energy Storage Cable Bare Copper Stranded With SR Insulation

Name: UL3132 14AWG Energy Storage Cable Bare Copper Stranded With SR Insulation
Brand: Shineplus
Price: 1 USD

Buy cheap UL3132 14AWG Energy Storage Cable Bare Copper Stranded With SR Insulation product

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : 150℃

Name : Industrial Wire and Cable

Certification : RoHS Reach

Jacket : SR

Place of Origin : China

Voltage : 300V

Model Number : UL3132

Insulation : SR

Payment Terms : T/T,L/C,Western Union

Packing : Packed in Rolls or Reels

Price : To be negotiated

Application : Energy Storage System

Supply Ability : 100km per day

SP : 2305439

Brand Name : Shineplus

Conductor : Bare Copper Stranded

Packaging Details : Packed in rolls or reels

Contact Now

UL3132 14AWG Energy Storage Silicone Cable Bare Copper Stranded with SR Insulation 300V 150℃

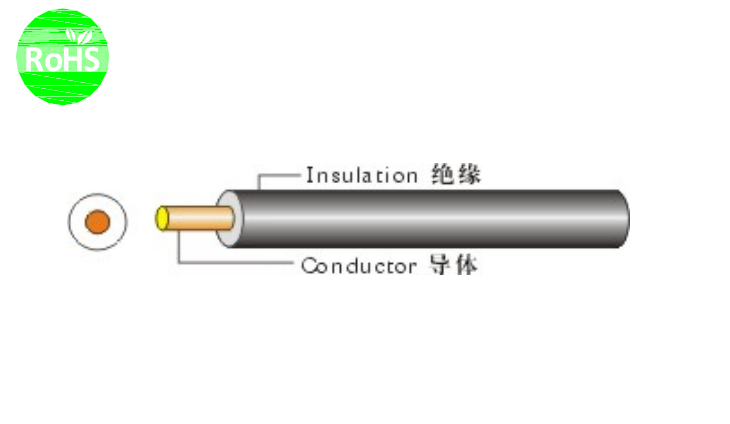

Construction

Conductor			Bare Copper Stranded
Cross section			14AWG
Construction			41/0.254mm
Strand Dia.			1.88mm(Ref)
Insulation			SR(halogen free)
Nom.Thickness			0.51mm
Min.Thickness			0.46mm
Insulation Dia.			3.60±0.20mm
Insulation colour			Per request

Application:

This product applies to automotive power lines and eneergy storage equipment.

Electric Performance:

Rated Temperature:-40~150℃

Voltage rating:300V

Max.conductor DC resistance(20℃):8.62Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥3.45MPa

Elongation:≥100%

Aged condition:159±1℃×60D

Percent of original tensile strength:≥60%

Percent of original elongation:≥25%

Flame test:VW-1
