Basic Info.
Model NO.
Industrial wire harness
Industry Type
Industrial Wire Harness
Bandaging Materials
PVC Pipe
General Wiring Harness
Crimping Assembling Classes
Signal
High Voltage Wiring Harness
Certification
RoHS, ISO9001, CCC
Wire
Trvvsp 0.2mm²+0.25mm² Tow Chain Cable
Wiggle Test
≥5 Million Times
Insulation Impedance
≥5mΩ
Production Capacity
5000PCS/Day
Packaging & Delivery
Package Size
470.00cm * 350.00cm * 170.00cm
Package Gross Weight
10.000kg
Product Description

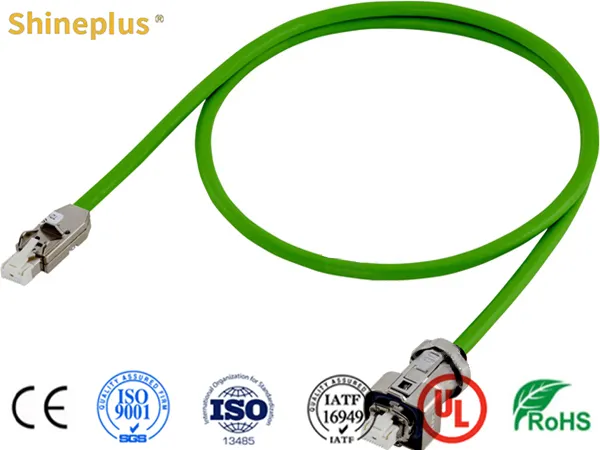

Servo System Robot With Standardized RJ45 Servo Harness Resistant To Bending Drag Chain Cable
Product information:
RJ45 servo harness the high-quality materials and advanced manufacturing processes are used to ensure its reliability and stability in various industrial environments. The signal cable is braided with 0.2mm² copper wire, while the power cable is braided with 0.25mm² copper to ensure good electrical conductivity. Polyvinyl chloride was chosen as the insulating material, while the reasonable thickness of the insulation layer not only enhances the mechanical strength, but also effectively isolates the signals inside the harness. To further safeguard the stability of signal transmission, a copper foil plus braided double-layer shield is used to effectively suppress electromagnetic interference. The outer jacket is made of abrasion- and chemical-resistant polyurethane (PUR), whose reasonable thickness and excellent tensile strength enable the harness to perform well in a variety of harsh environments. In addition, the metal-shelled RJ45 connectors have built-in gold-plated contacts, which further enhance the reliability of signal transmission.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
| Product Name |
Servo System Robot With Standardized RJ45 Servo Harness Resistant To Bending Drag Chain Cable |
| Certification |
Pass ISO13485,ISO9001,IATF16949,UL and ROHS certification |
| Product application |
Industrial equipment (servo system) robot, printing industry, packaging industry, textile industry, CNC industry, electronic assembly industry, etc |
| Length, color |
Optional |
| Processing technic |
Welding, injection molding |
| Customized or not |
Yes |
| Test requirement |
Wiggle test |
| Samples |
Samples confirmed first before mass production |
Product application:
1. Industrial automation equipment: The RJ45 industrial wire harness suitable for PLC, servo drive, industrial robot and other automation equipment, can withstand mechanical stress and electromagnetic interference in high dynamic application scenarios.
2. CNC machine tools: The RJ45 industrial wire harness used in CNC machining centers, lathes, milling machines and other CNC machine tools, providing stable power supply and signal transmission to ensure high precision operation of equipment.
Product character
I: Anti-electromagnetic interference: The RJ45 industrial wire harness copper foil shielding layer is used to effectively block external electromagnetic interference and ensure the stability of signal transmission.
II: Flexibility and bending resistance: The RJ45 industrial wire harness using fine wiring copper conductor, combined with PVC/PUR composite insulating outer sheath design, with excellent flexibility and bending resistance, can adapt to high dynamic application scenarios.
III: Tensile and tensile resistance: The RJ45 industrial wire harness conductor is designed by special stranding structure, the terminal connection is designed by strain elimination structure, the overall cable can withstand high tensile load.
