CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket

Name: CAT5E SFTP Communication Cable 4P24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
Brand: Shineplus
Price: 1 USD

Buy cheap CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket product

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : -40～75℃

Certification : RoHS Reach

Jacket : LSZH

Place of Origin : China

Voltage : 30V

Model Number : CAT5E SFTP

Insulation : Foam PE

Brand Name : Shineplus

Conductor : Bare Copper Stranded

Payment Terms : T/T,L/C,Western Union

Packing : Packed in rolls or reels

Price : To be negotiated

Application : For home networks, office networks and small data centers

Supply Ability : 100km per day

SP : 1500295

Packaging Details : Packed in rolls or reels

Contact Now

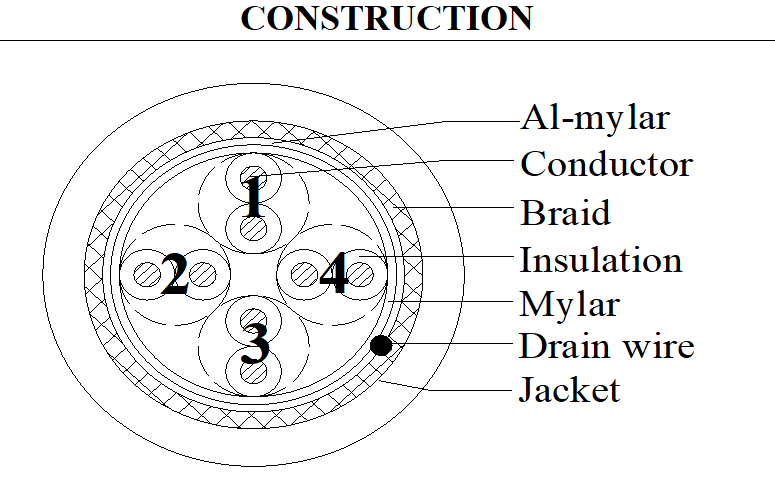

CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded with Foam PE Insulation LSZH Jacket

ITEM		4P×24AWG(7/0.20B)
CONDUCTOR	Material	Bare copper stranded
	Size	7/0.20±0.008mm
	O.D.(Ref)	0.60mm
INSULATION	Material	Foam PE
	Min.average thickness	0.20mm
	Min.thickness at any point	0.16mm
	O.D.	1.00±0.05mm
TWISTED	O.D.(Ref)	2.00mm
CABLING	Material	Mylar
	Material	Al-Mylar
DRAIN	Material	Tinned copper solid
	Size	1/0.50mm
BRAID	Material	Tinned copper
	Size	0.10mm(40%min.)
JACKET	Material	LSZH
	Min.average thickness	0.58mm
	Min.thickness at any point	0.48mm
	O.D.	6.50±0.20mm

For home networks, office networks and small data centers

This product is suitable for engineering wiring, network connection,equipment port system connection.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:-40～75℃

Max. DC conductor resistance(20℃):93.8Ω/km

Voltage withstand test:AC:0.5kV/1min

Min. insulation resistance : 5000MΩ.km

PHYSICAL PROPERTIES

Tensile strength:≥8.27MPa

Elongation:≥100%

Aged condition:100±1℃×48h

Percent of original tensile strength:≥70%

Percent of original elongation:≥60%

CAT5E SFTP Communication Cable 4P×24AWG Bare Copper Stranded With Foam PE Insulation LSZH Jacket
