USB Cable 1P×32AWG+2C×25AWG Tinned Copper USB Cable With PE/PP Insulation TPE Jacket

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : 80℃

Certification : RoHS Reach

Jacket : TPE

Model Number : NOUL

Insulation : PE/PP

Payment Terms : T/T,L/C,Western Union

Packing : Packed in rolls or reels

Price : To be negotiated

Application : Communication Moblie Devices

Supply Ability : 100km per day

SP : 1604752

Brand Name : Shineplus

Conductor : Tinned Copper Stranded

Place of Origin : China

Voltage : 30V

Packaging Details : Packed in rolls or reels

Contact Now

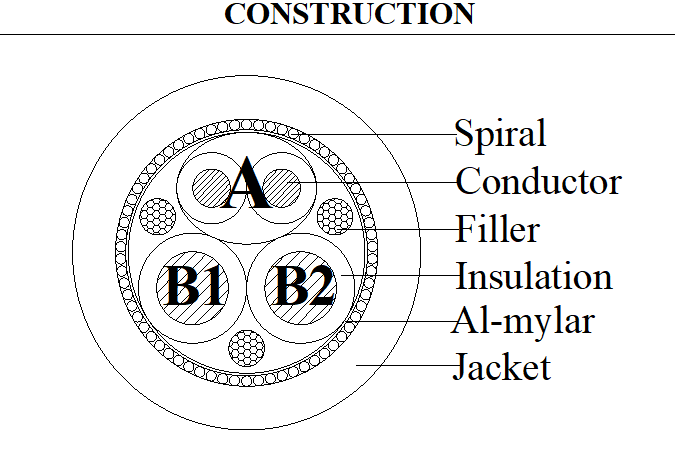

NOUL USB Cable 1P×32AWG+2C×25AWG Tinned Copper Stranded with PE/PP Insulation TPE Jacket

ITEM A : 1P×32AWG B : 2C×25AWG
CONDUCTOR Material Tinned copper stranded Tinned copper stranded+Nylon
Size 19/0.05±0.008mm 37/0.08±0.008mm
O.D.(Ref) 0.25mm 0.56mm
INSULATION Material PE PP
Min.average thickness 0.15mm 0.15mm
Min.thickness at any point 0.10mm 0.12mm
O.D. 0.55±0.05mm 0.85±0.05mm
TWISTED O.D.(Ref) 1.10mm /
CABLING Filler Nylon
Material Al-mylar(face out,Overlap:≥25%)
SPIRAL Material Tinned copper
Size 66±8/0.08±0.008mm 90% min.
JACKET Material TPE
Min.average thickness 0.35mm
Min.thickness at any point 0.28mm
O.D. 2.80±0.15mm

This product is suitable for connecting communication moblie devices.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):A : 588Ω/km , B: 199Ω/km

Voltage withstand test:AC:0.5kV/1min

Inpedance(A):90±13.5Ω

PHYSICAL PROPERTIES

Tensile strength:≥8.27MPa

Elongation:≥200%

Aged condition:113±1℃×240h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

Flame test:FT2

Bending test: 500g,R=25.4mm,±60°,30c/min 5000cycles min.

USB Cable 1P×32AWG+2C×25AWG Tinned Copper USB Cable With PE/PP Insulation TPE Jacket
