2 C× 36 AWG + 3C × 32AWG + 1C × 28AWG Teflon Insulation Wire , Biocompatible PVC Jacket Cable

Product Categories
Guangdong Shineplus Connection Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2 C× 36 AWG + 3C × 32AWG + 1C × 28AWG Teflon Insulation Wire , Biocompatible PVC Jacket Cable

  • 1
  • 2

Delivery Time : 3-4 Weeks

Voltage : 30V

Packing : Packed in reels or rolls

Application : Medical devices, Diagnostic equipment, Patient monitoring

Supply Ability : 100km per day

SP : 2502430

Certification : ISO9001, CE, CCC, RoHS

Price : To be negotiated

Brand Name : Shineplus

Insulation : PVC FEP

Name : Medical Device Cable

Place of Origin : China

Temperaturerange : 80°C

Payment Terms : T/T,L/C,Western Union

Conductor : Tinned Copper Stranded

Model Number : Customized

MOQ : 1000m

Packaging Details : Packed in rolls or reels

Jacket : TPV (Santoprene 8281-65MED)（biocompatible）

Contact Now

2 Coax × 36 AWG + 3C × 32AWG + 1Coax × 28AWG Teflon Insulation Biocompatible PVC Jacket Medical Cable

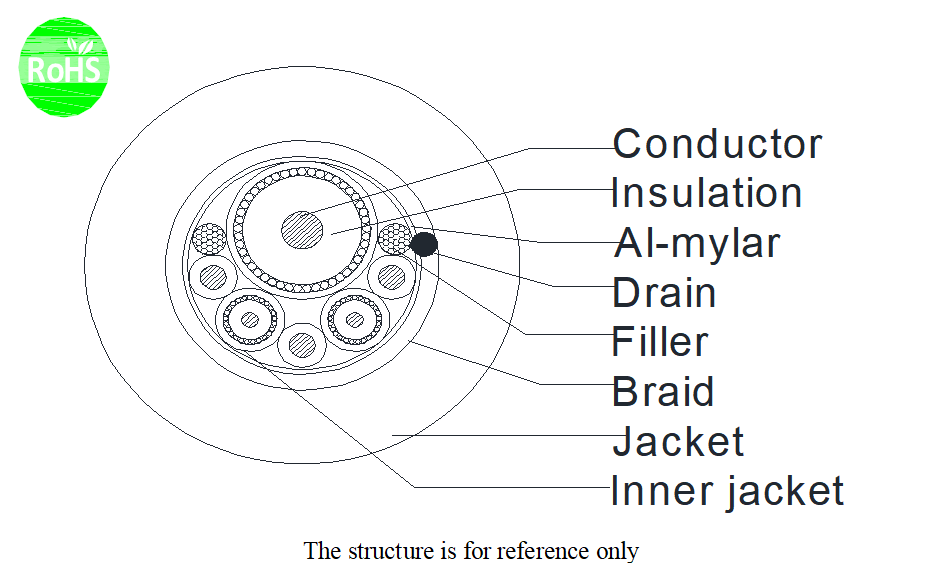

Construction
A:2Coax×36AWG B:3C×32AWG C:1Coax×28AWG
Conductor Tinned copper stranded
Cross section 36AWG 32AWG 28AWG
Construction 7/0.05mm 7/0.08mm 7/0.127mm
Strand Dia.(Ref.) 0.15mm 0.24mm 0.38mm
Insulation PFA FEP FEP
Nom.Thickness 0.10mm 0.10mm 0.30mm
Insulation Dia. 0.40±0.05mm 0.45±0.05mm 1.10±0.08mm
Insulation colour A.natural B1.red B2.yellow B3.blue C1.natural
Sprial Tinned copper,0.05mm,≥90% / Tinned copper,0.08mm,≥90%
Inner Jacket PFA / FEP
Nom.Thickness 0.05mm / 0.05mm
O.D. 0.64±0.08mm / 1.40±0.08mm
Color white / blue
Filler Optional
Material Al-mylar(Face out)
Drain Tinned copper stranded,7/0.127mm
Assembly 2Coax×36AWG+3C×32AWG+1Coax×28AWG+AD
Braid Tinned copper,0.08mm,≥90%
Jacket TPV (Santoprene 8281-65MED)(biocompatible)
Nom.Thickness 0.76mm
O.D. 4.00±0.20mm
Color black

Product Description
Products are widely used for medical wire harness.
Key Features
  • Application: Internal wiring or external interconnection of electronic equipment
  • Application standard: According to customer requirement
  • Excellent insulation performance with stable chemical properties
  • Teflon insulation
  • Biocompatible and environmentally friendly
Construction Details
  • Tinned or bare copper, stranded or single conductor (2-50 conductors) 36-16AWG
  • Teflon insulation
  • Max core wire size: 20AWG, available in flat or round
  • Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
  • PVC jacket
Technical Parameters
  • Rated temperature: 80ºC
  • Rated Voltage: 30V
Electric Performance
Rated Temperature 80℃
Voltage rating 30V
Max.conductor DC resistance(20℃) A:1500Ω/km B:595Ω/km C:239Ω/km
Dielectric Strength AC 0.5kV/1min
Impedance: A&C:50±5Ω
Capacitance A:100±15pF/m
B:Nom.169pF/m

2 C× 36 AWG + 3C × 32AWG + 1C × 28AWG Teflon Insulation Wire , Biocompatible PVC Jacket Cable
