CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket

Name: CAT5E SFUTP Communication CABLE 4P26AWG Bare Copper Stranded With PE Insulation LSHF Jacket
Brand: Shineplus
Price: 1 USD

Buy cheap CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded With PE Insulation LSHF Jacket product

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : -20～80℃

Certification : RoHS Reach

Jacket : LSHF

Model Number : CAT5E SF/UTP

Insulation : PE

Payment Terms : T/T,L/C,Western Union

Packing : Packed in rolls or reels

Price : To be negotiated

Application : For home networks, office networks and small data centers

Supply Ability : 100km per day

SP : 1702539

Brand Name : Shineplus

Conductor : Bare Copper Stranded

Place of Origin : China

Voltage : 30V

Packaging Details : Packed in rolls or reels

Contact Now

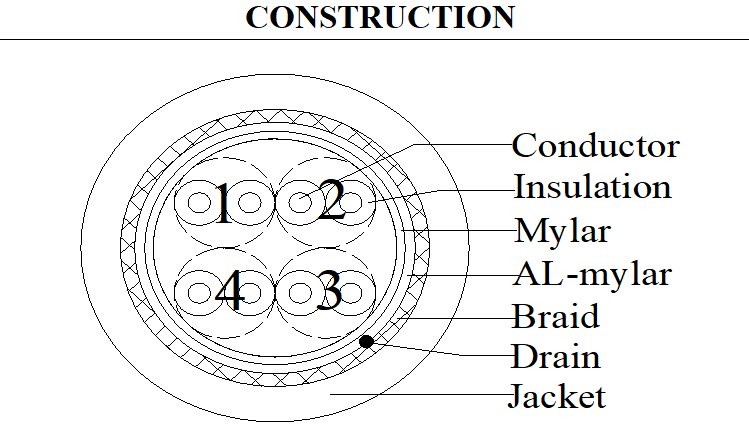

CAT5E SF/UTP Communication CABLE 4P×26AWG Bare Copper Stranded with PE Insulation LSHF Jacket

ITEM		4P×26AWG(7/0.16B)+MADB
CONDUCTOR	Material	Bare copper stranded
	Size	7/0.16±0.008mm
	O.D.(Ref)	0.48mm
INSULATION	Material	PE
	Min.average thickness	0.20mm
	Min.thickness at any point	0.16mm
	O.D.	0.92±0.05mm
TWISTED	O.D.(Ref)	1.84mm
CABLING	Material	Mylar
	Material	AL-mylar(Foil facing out)
DRIAN	Material	Tinned copper stranded
	Size	7/0.16±0.008mm
BRAID	Material	Tinned copper
	Size	16/9/0.10mm (80% nom.)
JACKET	Material	LSHF
	Min.average thickness	0.40mm
	Min.thickness at any point	0.32mm
	O.D.	5.60±0.20mm

For home networks, office networks and small data centers

This product is suitable for engineering wiring, network connection,equipment port system connection.

ELECTRICAL CHARACTERISTICS:

Rated voltage:30V

Rated temperature:-20～80℃

Max. DC conductor resistance(20℃):140Ω/km

Voltage withstand test:AC 1kV/1min

Impedance : 100±15Ω

Velocity of propadation : 67% nom.

PHYSICAL PROPERTIES

Tensile strength:≥8.27MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

IEC 60332-1-2
