300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire

Name: 300V Tinned Copper Cable UL2517 3C22 AWG Stranded Copper Wire
Brand: Shineplus
Price: 1 USD

Buy cheap 300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire product

MOQ : 1000m

Delivery Time : 3-4 Weeks

Voltage : 300V

Name : Tinned Copper Cable

Certification : RoHS Reach

Insulation : SR-PVC

Place of Origin : China

Jacket : PVC

Model Number : UL2517

Conductor : Tinned Copper Stranded

Supply Ability : 100km per day

Packing : Packed in Rolls or Reels

Brand Name : Shineplus

SP : 1500312

Payment Terms : T/T,L/C,Western Union

Application : Industrial,comsumer Electrics,etc

Price : To be negotiated

Temperature : -40~105℃

Packaging Details : Packed in rolls or reels

Contact Now

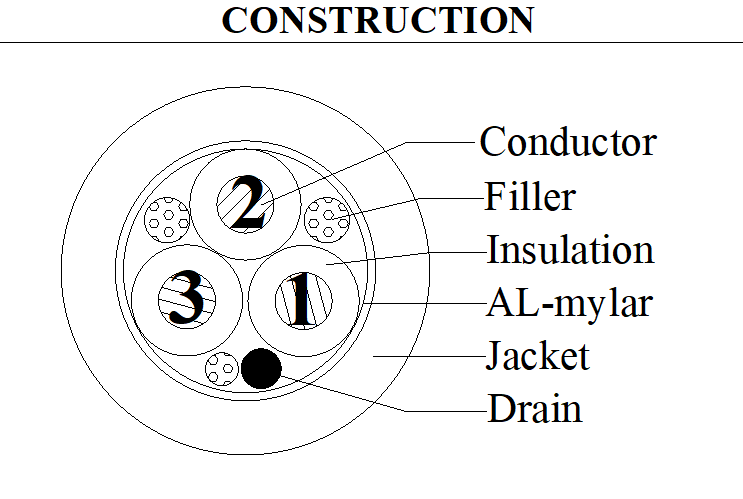

UL2517 3C×22AWG Industrial Cable Tinned copper stranded with SR-PVC Insulation and PVC Jacket 300V 105℃

ITEM		3C×22AWG(26/0.127T)
CONDUCTOR	Material	Tinned copper stranded
	Size	26/0.127±0.008mm
	O.D.(Ref)	0.75mm
INSULATION	Material	SR-PVC
	Min.average thickness	0.23mm
	Min.thickness at any point	0.18mm
	O.D.	1.30±0.05mm
CABLING	Filler	Cotton
	Drain wire	Tinned copper stranded 7/0.254±0.008mm
	Material	Al-mylar(foil face in)
	Assembly	3C×22AWG(26/0.127T)
JACKET	Material	PVC
	Min.average thickness	0.76mm
	Min.thickness at any point	0.61mm
	O.D.	4.80±0.20mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:-40~105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):59.4Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1 FT1

Bending test: L=300g R=2mm ±90° 30cycles/min
