5Cx10 AWG Stranded Copper Wire , Flexible Industrial Cable UL2517

  • 1
  • 2

Place of Origin : China

Temperature : 105℃

Name : Industrial Wire and Cable

Payment Terms : T/T,L/C,Western Union

Insulation : PVC

Delivery Time : 3-4 Weeks

Jacket : PVC

MOQ : 1000m

Packing : Packed In Reels

Supply Ability : 100km per day

Model Number : UL2517

Brand Name : Shineplus

Application : Industrial,comsumer Electrics,etc

Certification : RoHS Reach

SP : 2601984

Conductor : Tinned Copper Stranded

Price : To be negotiated

Voltage : 300V

Packaging Details : Packed in rolls or reels

Contact Now

UL2517 5Cx10AWG+W Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation and PVC Jacket

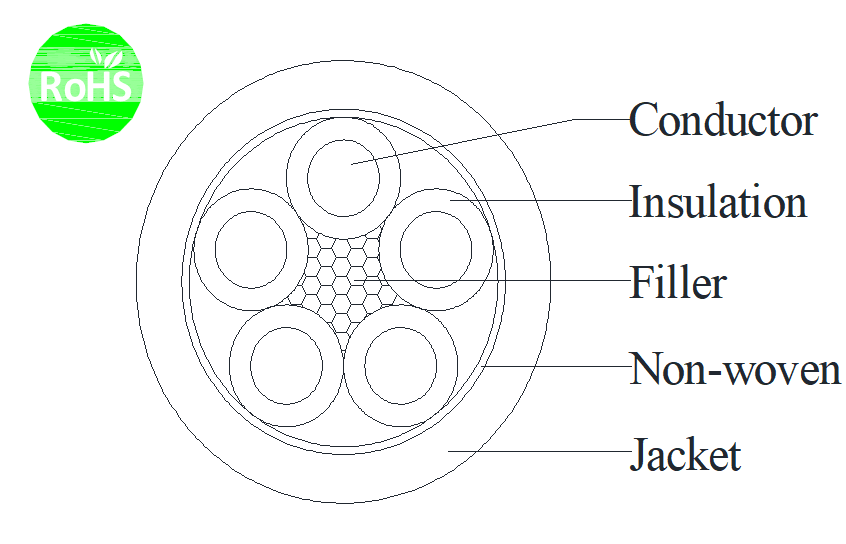

Construction
Conductor Tinned copper stranded
Cross section 10AWG
Construction 105/0.254mm
Strand Dia. 3.20mm(Ref.)
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 4.20±0.20mm
Insulation colour 1.black 2.white 3.brown 4.blue 5.yellow/green
Filler Optional
Material Non-woven,≥25%
Assembly 5Cx10AWG
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 13.50±0.50mm
Colour black

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):3.546Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1

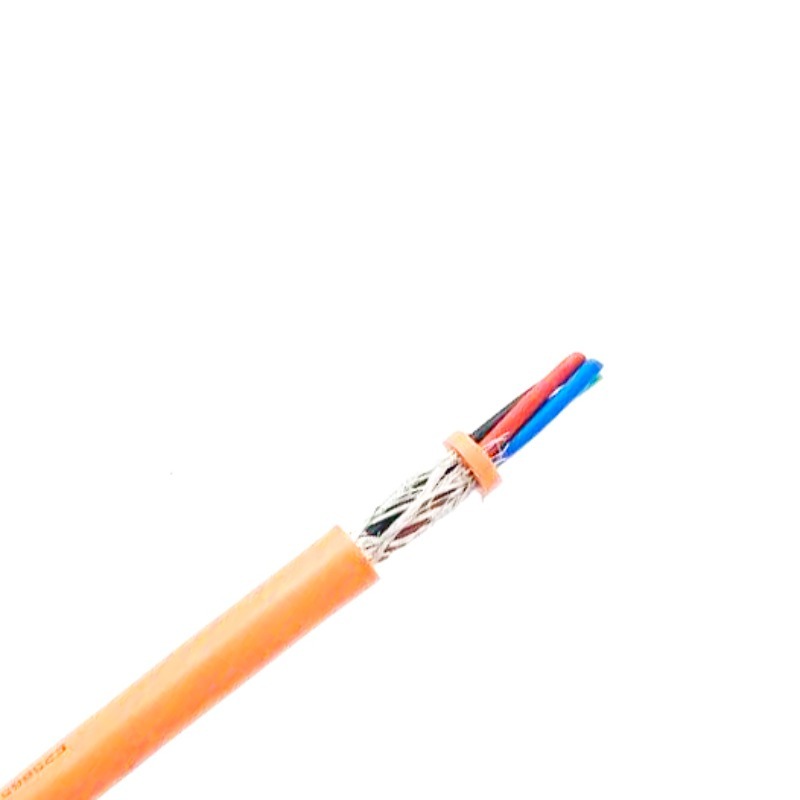

5Cx10 AWG Stranded Copper Wire , Flexible Industrial Cable UL2517
