UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket

Product Categories
Guangdong Shineplus Connection Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket

  • 1
  • 2

Model Number : UL2464

Insulation : SR-PVC

Payment Terms : T/T,L/C,Western Union

Packing : Packed in rolls or reels

Price : To be negotiated

Application : Industrial,comsumer Electrics,etc

Supply Ability : 100km per day

SP : 1701393

Name : Industrial Wire and Cable

Brand Name : Shineplus

Conductor : Bare Copper Stranded

Packaging Details : Packed in rolls or reels

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : -40~80℃

Certification : RoHS Reach

Jacket : PVC

Place of Origin : China

Voltage : 300V

Contact Now

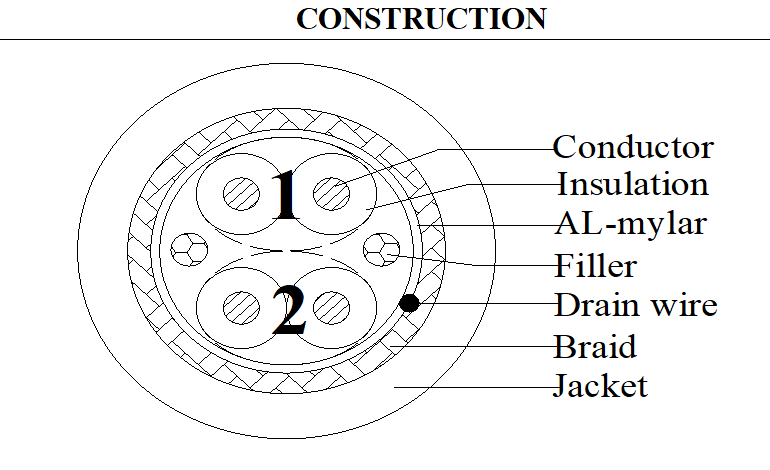

UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket


ITEM 2P×20AWG(105/0.08T)+ADB
CONDUCTOR Material Tinned copper stranded+Nylon
Size 105/0.08±0.008mm+250D
O.D.(Ref) 1.05mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.50±0.10mm
TWISTED O.D.(Ref) 3.00mm
CABLING Filler cotton
Material Al-mylar(face out)
Assembly 2P×20AWG(105/0.08T)+AD
DRAIN Material Tinned copper stranded
Size 105/0.08±0.008mm+250D
BRAID Material Tinned copper
Size 0.12mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 7.50±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: -40～80℃
Max.conductor DC resistance(20℃):36.7Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2464
RoHS

VW-1

FT1


UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket
