TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1

Name: TCER 3C10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation XLPE Jacket FT1
Brand: Shineplus
Price: 1 USD

Buy cheap TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1 product

Temperature : -40~90℃

Name : Industrial Wire and Cable

Brand Name : Shineplus

Insulation : XLPE

Delivery Time : 3-4 Weeks

Conductor : Bare Copper Stranded

Packing : Packed in rolls or reels

Application : Industrial,comsumer Electrics,etc

Certification : RoHS Reach

SP : 2100941

Payment Terms : T/T,L/C,Western Union

Jacket : XLPE

Place of Origin : China

Model Number : TC-ER

Packaging Details : Packed in rolls or reels

Supply Ability : 100km per day

Voltage : 600V

Price : To be negotiated

MOQ : 1000m

Contact Now

TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded with XLPE Insulation and XLPE Jacket FT1

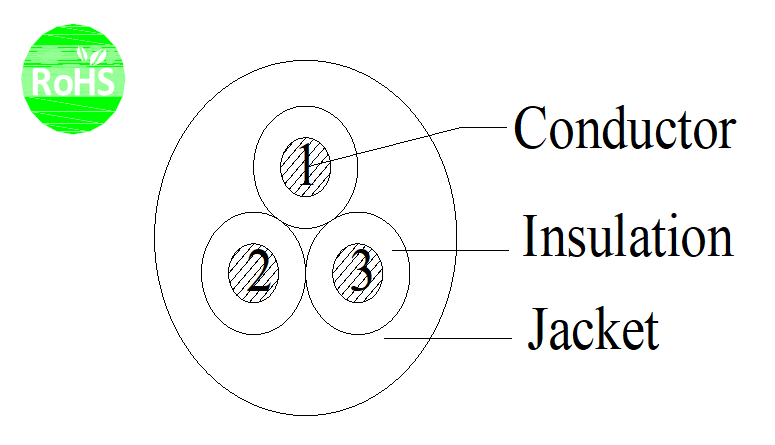

Construction

Conductor			Bare Copper Stranded
Cross section			10AWG
Construction			105/0.254mm
Strand Dia.			3.10mm
Insulation			XLPE
Nom.Thickness			0.76mm
Min.Thickness			0.69mm
Insulation Dia.			4.80±0.20mm
Insulation colour			1.black 2.red 3.green/yellow
Assembly			3C×10AWG
Jacket			XLPE
Nom.Thickness			1.14mm
Min.Thickness			0.91mm
O.D.			12.80±0.35mm
Colour			black

Application: Internal wring or external interconnection of electronic equipment.

It is suitable for the output main line of the AC end of the photovoltaic inverter.The power supply of the motor, and the connection of other power equipment in the industrial environment.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥250%

Aged condition:121±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥70%

Technical data
Rated voltage:600V
Rated Temperature: -40~90℃
Max.conductor DC resistance(20℃):3.409Ω/km
Dielectric Strength AC:3.0kV/1min

TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1
