UL20549 TPE Insulation Cable , 4Cx24AWG Tinned Copper Wire Manufacturers

Name: UL20549 TPE Insulation Cable 4Cx24AWG Tinned Copper Wire Manufacturers
Brand: Shineplus
Price: 1 USD

Buy cheap UL20549 TPE Insulation Cable , 4Cx24AWG Tinned Copper Wire Manufacturers product

Jacket : TPU

Delivery Time : 3-4 Weeks

Packing : Packed In Reels

Supply Ability : 100km per day

Application : Industrial,comsumer Electrics,etc

SP : 2005054

MOQ : 1000m

Conductor : Tinned Stranded Copper

Temperature : 80℃

Name : Industrial Wire and Cable

Price : To be negotiated

Packaging Details : Packed in rolls or reels

Certification : RoHS Reach

Place of Origin : China

Model Number : UL20549

Insulation : TPE

Brand Name : Shineplus

Payment Terms : T/T,L/C,Western Union

Voltage : 300V

Contact Now

UL20549 4Cx24AWG Tinned Stranded Copper Industrial Cable with TPU Jacket TPE Insulation FT2

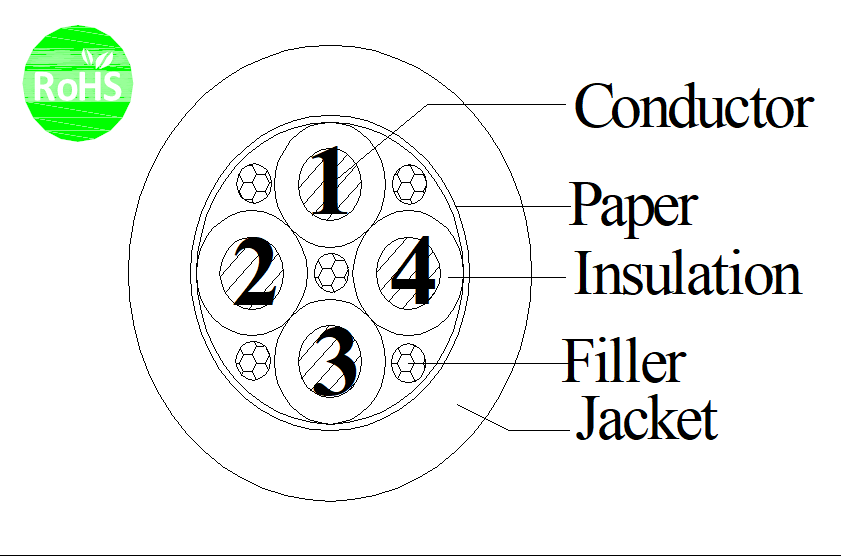

Construction

Conductor			Tinned Stranded Copper
Cross section			24AWG
Construction			41/0.08mm
Strand Dia.			0.60mm
Insulation			TPE
Nom.Thickness			0.23mm
Min.Thickness			0.18mm
Insulation Dia.			1.20±0.08mm
Insulation colour			1.black 2.white 3.red 4.yellow
Filler			Cotton
Tape			Paper
Assembly			4Cx24AWG
Jacket			TPU (Halogen free)
Nom.Thickness			0.76mm
Min.Thickness			0.61mm
Outer Dia.			4.70±0.20mm
Colour			Black(matt)

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):94.2Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL20549
RoHS

FT2
