UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃

  • 1
  • 2

Model Number : UL20549

Packing : Packed in Rolls or Reels

Payment Terms : T/T,L/C,Western Union

Insulation : SR-PVC

Temperature : 80℃

Name : Industrial Wire and Cable

Price : To be negotiated

Jacket : PVC

Supply Ability : 100km per day

Conductor : Tinned Copper Stranded

MOQ : 1000m

Delivery Time : 3-4 Weeks

Application : Industrial,comsumer Electrics,etc

Voltage : 300V

Certification : RoHS Reach

Brand Name : Shineplus

SP : 1802104

Packaging Details : Packed in rolls or reels

Place of Origin : China

Contact Now

UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃

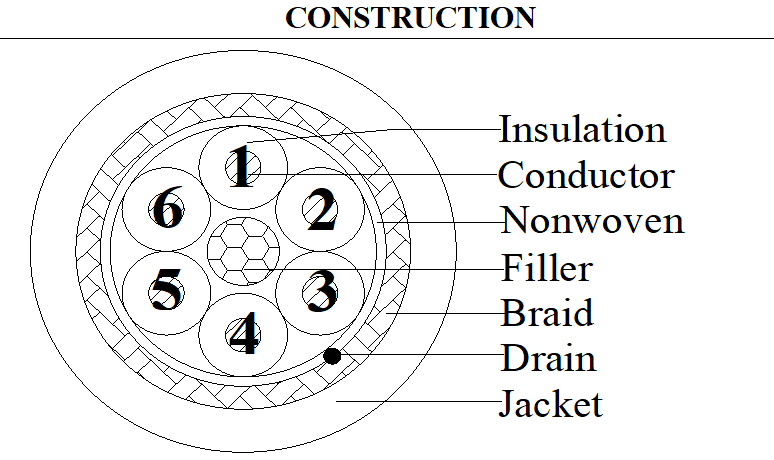

ITEM 6C×20AWG(65/0.10T)+WDB
CONDUCTOR Material Tinned copper stranded+nylon
Size 65/0.10±0.008mm
O.D.(Ref) 0.98mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.50±0.10mm
CABLING Filler cotton
Material Nonwoven tape
Assembly 6C×20AWG(65/0.10T)+WD
DRAIN Material Tinned copper stranded
Size 19/0.127±0.008mm
BRAID Material Tinned copper
Size 0.12mm(85% min.)
JACKET Material PVC 70±3A
Min.average thickness 1.20mm
Min.thickness at any point 0.96mm
O.D. 7.80±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.


Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃): 36.7Ω/km

Dielectric Strength AC:2.0kV/1min


Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Bending test:R=25.4mm,12times/min.


UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃
