UL2464 3P×24AWG Flexible Industrial Cable Bare Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Application : Industrial,comsumer Electrics,etc

Voltage : 300V

Certification : RoHS Reach

Model Number : UL2464

Packing : Packed in Rolls or Reels

Price : To be negotiated

Jacket : PVC

Supply Ability : 100km per day

Conductor : Tinned Copper Stranded

Brand Name : Shineplus

SP : 1801383

Payment Terms : T/T,L/C,Western Union

Insulation : SR-PVC

Temperature : 80℃

Packaging Details : Packed in rolls or reels

Name : Industrial Wire and Cable

Place of Origin : China

Contact Now

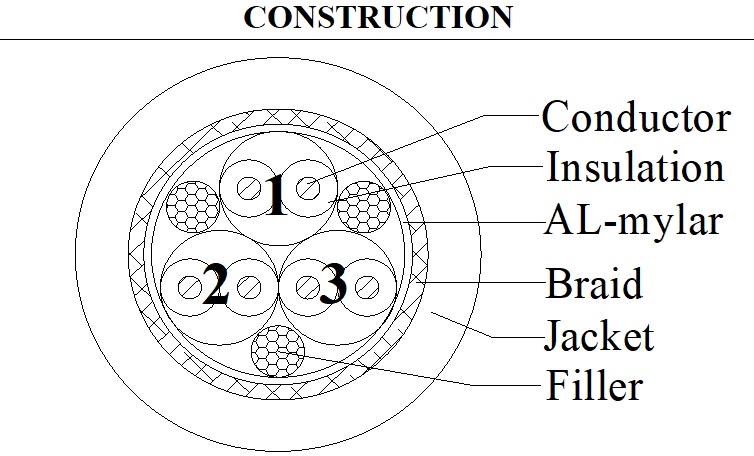

UL2464 3P×24AWG Flexible Industrial Cable Bare Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃


ITEM 3P×24AWG(44/0.08B)+AB
CONDUCTOR Material Bared copper stranded
Size 44/0.08±0.008mm
O.D.(Ref) 0.61mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.15±0.05mm
TWISTED OD .(Ref) 2.30mm
CABLING Filler Cotton+Nylon
Material Al-mylar(foil face out)
BRAID Material Tinned copper
Size 0.10±0.008mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 6.50±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.


Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):87.6Ω/km

Dielectric Strength AC:2.0kV/1min


Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1

bending test: 20times/minute, ±100° bending radius:100mm ≥100000 times
