UL2464 5C×22AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : -20~80℃

Certification : RoHS Reach

Jacket : PVC

Model Number : UL2464

Insulation : PVC

Payment Terms : T/T,L/C,Western Union

Application : Industrial,comsumer Electrics,etc

Price : To be negotiated

Packing : Packed in rolls or reels

Supply Ability : 100km per day

SP : 2102653

Brand Name : Shineplus

Conductor : Tinned Copper Stranded

Place of Origin : China

Voltage : 300V

Packaging Details : Packed in rolls or reels

Name : Industrial Wire and Cable

Contact Now

UL2464 5C×22AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket

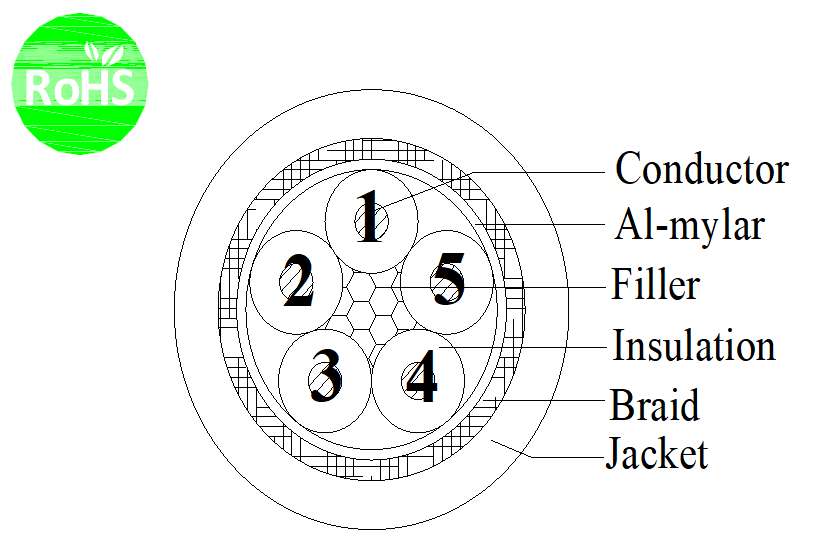

Construction
Conductor Tinned copper stranded
Cross section 22AWG
Construction 7/0.254mm
Strand Dia. 0.76mm
Insulation PVC
Nom.Thickness 0.23m
Min.Thickness 0.18mm
Insulation Dia. 1.30±0.08m
Insulation colour 1.black 2.red 3.orange 4.yellow 5.green
Filler optional
Material Al-mylar(facing out)
Assembly 5C×22AWG+A
Braid Tinned copper
Size 0.10mm ,80%Min.
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 5.70±0.20mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: -20~80℃
Max.conductor DC resistance(20℃):59.4Ω/km
Dielectric Strength AC:2.0kV/1min

Min . Insulation resistance(20℃):10MΩ*km


Standards
International:UL2464
RoHS

VW-1



UL2464 5C×22AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket
