UL2586 3C×6AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket 300V VW-1

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Packing : Packed in rolls or reels

Voltage : 600V

Certification : RoHS Reach

Model Number : UL2586

Application : Industrial,comsumer Electrics,etc

Payment Terms : T/T,L/C,Western Union

Insulation : PVC

Temperature : -40~105℃

Price : To be negotiated

Jacket : PVC

Supply Ability : 100km per day

Conductor : Tinned Copper Stranded

Brand Name : Shineplus

SP : 1905547

Name : Industrial Wire and Cable

Place of Origin : China

Packaging Details : Packed in rolls or reels

Contact Now

UL2586 3C×6AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket 300V VW-1

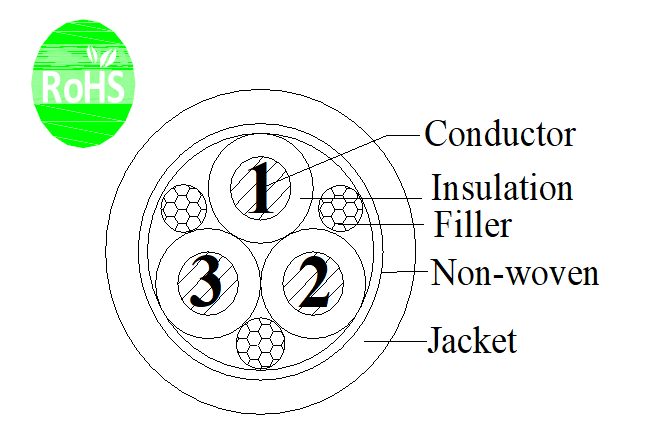

Construction
Conductor Tinned copper
Cross section 6AWG
Construction 182/0.32mm
Strand Dia. 5.20mm(Ref.)
Insulation PVC
Nom.Thickness 1.30mm
Min.Thickness 1.04mm
Insulation Dia. 8.0±0.30mm
Insulation colour 1~2 orange with black number 1~2 3.Gray
Assembly 3C+Filler
Material Non woven
Jacket PVC
Nom.Thickness 1.52mm
Min.Thickness 1.22mm
Outer Dia. 21.0±0.60mm
Colour black


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

IEC 60332-1-2


Technical data
Rated voltage:600V
Rated Temperature: -40~105℃
Max.conductor DC resistance(20℃): IEC: 1.24Ω/km UL: 1.403Ω/km
Dielectric Strength AC:3.0kV/1min

Min.Insulation DC resistance:10MΩ*km


Standards
International:UL2586

Reach
RoHS

VW-1

FT1
