UL2586 3C×8AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket 600V FT-1

  • 1
  • 2

Supply Ability : 100km per day

Conductor : Tinned Copper Stranded

Model Number : UL2586

Application : Industrial,comsumer Electrics,etc

MOQ : 1000m

Delivery Time : 3-4 Weeks

Packing : Packed in rolls or reels

Payment Terms : T/T,L/C,Western Union

Insulation : PVC

Temperature : -40~105℃

Price : To be negotiated

Jacket : PVC

Voltage : 600V

Certification : RoHS Reach

Place of Origin : China

Packaging Details : Packed in rolls or reels

Name : Industrial Wire and Cable

Brand Name : Shineplus

SP : 1802424

Contact Now

UL2586 3C×8AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket 600V FT-1

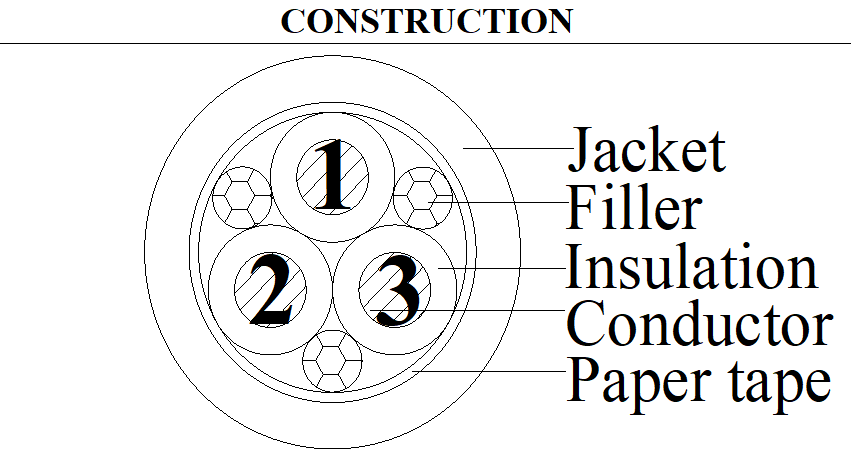

ITEM 3C×8AWG(168/0.254T)
CONDUCTOR Material Tinned copper stranded
Size 168/0.254±0.008mm
O.D.(Ref) 4.20mm
INSULATION Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.69mm
O.D. 5.80±0.20mm
CABLING Material Filler
Material Paper tape
Assembly 3C×8AWG(168/0.254T)
JACKET Material PVC
Min.average thickness 1.14mm
Min.thickness at any point 0.92mm
O.D. 15.20±0.35mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%


Technical data
Rated voltage:600V
Rated Temperature: -40~105℃
Max.conductor DC resistance(20℃): 2.23Ω/km
Dielectric Strength AC:2.0kV/1min


Standards
International:UL2586

Reach
RoHS

VW-1

FT1
