10C×24AWG Industrial Cable Tinned Copper Stranded Cable With SR-PVC Insulation / PVC Jacket 300V

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Voltage : 300V

Name : Tinned Copper Stranded Cable

Certification : RoHS Reach

Insulation : SR-PVC

Model Number : UL2517

Conductor : Tinned Copper Stranded

Payment Terms : T/T,L/C,Western Union

Application : Industrial,comsumer Electrics,etc

Price : To be negotiated

Temperature : -40～105℃

Supply Ability : 100km per day

Packing : Packed in Rolls or Reels

Brand Name : Shineplus

SP : 1504449

Packaging Details : Packed in rolls or reels

Place of Origin : China

Jacket : PVC

Contact Now

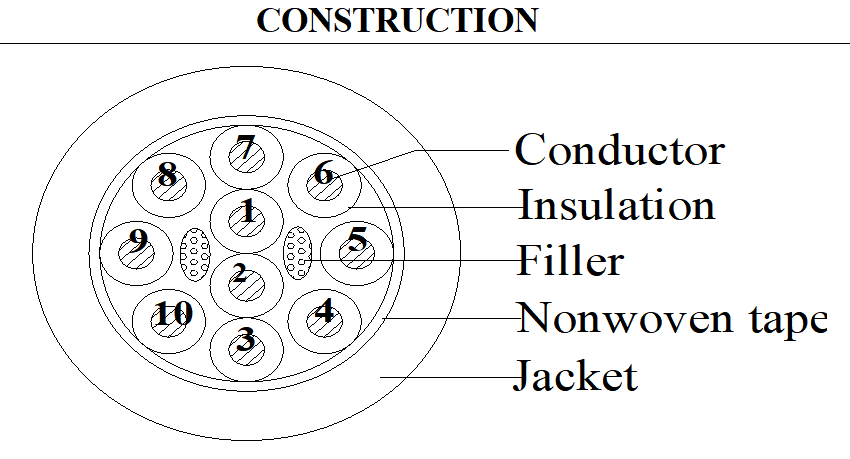

UL2517 10C×24AWG Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 105℃

ITEM 10C×24AWG(7/0.20T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.20±0.008mm
O.D.(Ref) 0.60mm
INSULATION Material SR-PVC
Min.average thickness 0.30mm
Min.thickness at any point 0.25mm
O.D. 1.25±0.03mm
CABLING Filler PP rope
Material Nonwoven tape
JACKET Material PVC (UV and moisture resistance)
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 7.00±0.20mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:-40~105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):94.2Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1,FT1

10C×24AWG Industrial Cable Tinned Copper Stranded Cable With SR-PVC Insulation / PVC Jacket 300V
