UL2517 15C×26AWG Bare Copper Stranded Industrial Flexible Cable With SR-PVC Insulation PVC Jacket 300V

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : 105℃

Certification : RoHS Reach

Jacket : PVC

Model Number : UL2517

Insulation : SR-PVC

Payment Terms : T/T,L/C,Western Union

Packing : Packed in rolls or reels

Price : To be negotiated

Application : Industrial,comsumer Electrics,etc

Supply Ability : 100km per day

SP : 1605762

Brand Name : Shineplus

Conductor : Bare Copper Stranded

Place of Origin : China

Voltage : 300V

Packaging Details : Packed in rolls or reels

Contact Now

UL2517 15C×26AWG Bare Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket 300V 105℃

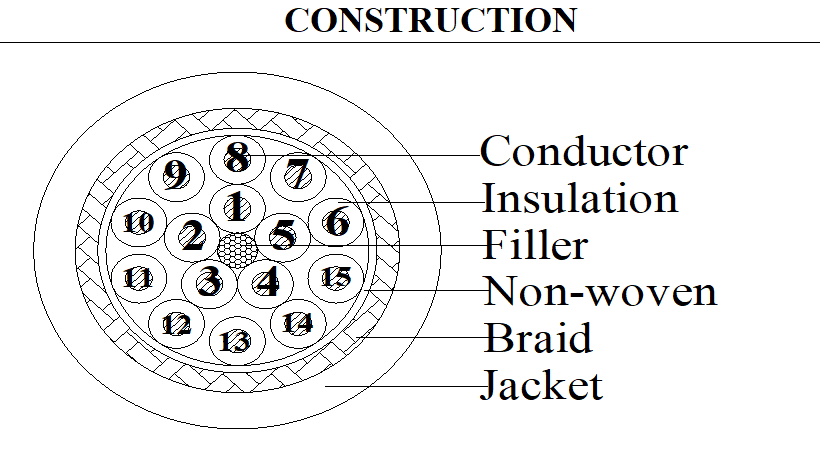

ITEM 15C×26AWG(7/0.16B)
CONDUCTOR Material Bare copper stranded
Size 7/0.16±0.008mm
O.D.(Ref) 0.48mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.00±0.05mm
CABLING Filler PP rope
Material Non-woven tape
Assembly 15C×26AWG(7/0.16B)
BRAID Material Tinned copper
Size 0.12mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 7.20±0.30mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature:105℃
Max.conductor DC resistance(20℃):140Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1

FT1
