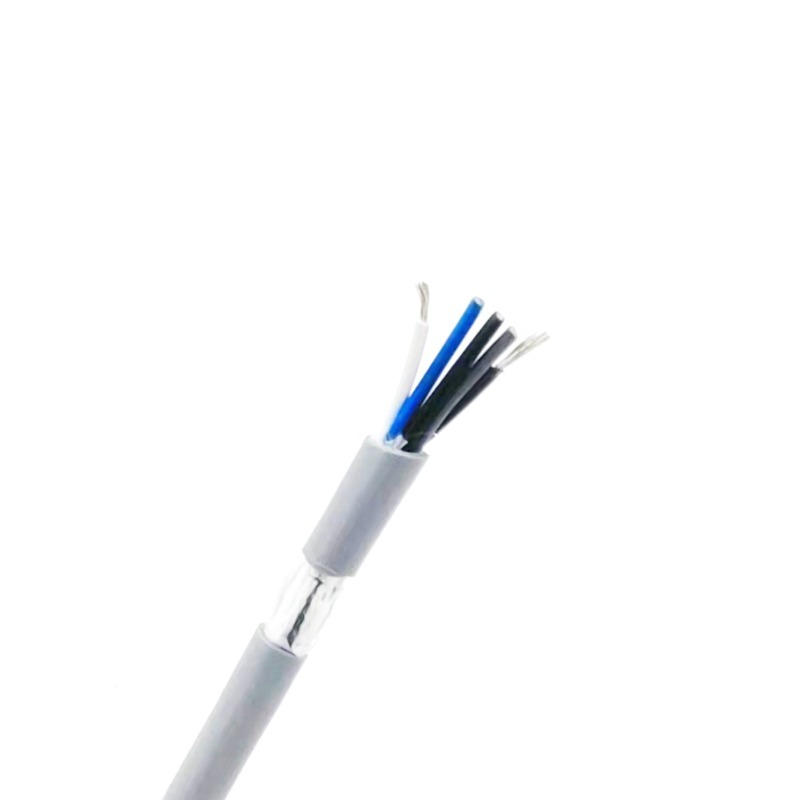

6Cx20AWG+W UL2517 Cable , Stranded Tinned Copper Wire With PVC Jacket PVC Insulation

  • 1
  • 2

Jacket : PVC

Place of Origin : China

Packing : Packed In Reels

Application : Industrial,comsumer Electrics,etc

SP : 2102374

Model Number : UL2517

Temperature : 105℃

Delivery Time : 3-4 Weeks

Brand Name : Shineplus

Supply Ability : 100km per day

Payment Terms : T/T,L/C,Western Union

Insulation : PVC

Certification : RoHS Reach

Conductor : Tinned Copper Stranded

Packaging Details : Packed in rolls or reels

Price : To be negotiated

MOQ : 1000m

Voltage : 300V

Contact Now

UL2517 6Cx20AWG+W Industrial Cable Tinned Copper Stranded with PVC Jacket PVC Insulation VW-1

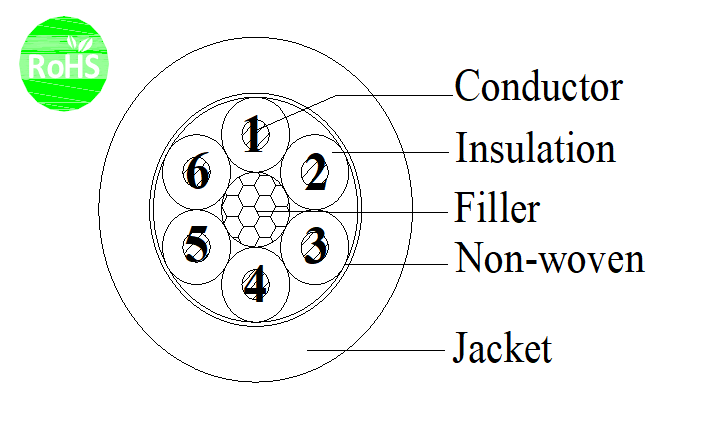

Construction
Conductor Tinned copper stranded
Cross section 20AWG
Construction 26/0.16mm
Strand Dia. 0.94mm
Insulation PVC
Nom.Thickness 0.28mm
Min.Thickness 0.22mm
Insulation Dia. 1.70±0.10mm
Insulation colour 1.black 2.brown 3.red 4.orange 5.yellow 6.green
Filler Optional
Material Non-woven,≥25%
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 7.20±0.25mm
Colour Per request

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):36.7Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1
