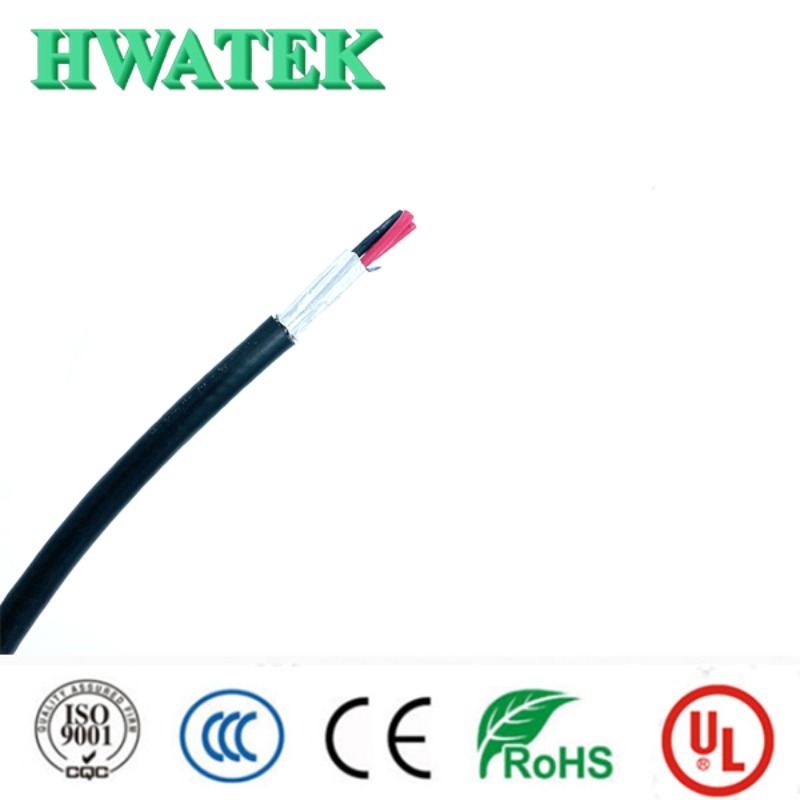

UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket

  • 1
  • 2

Conductor : Bare Copper Stranded

Price : To be negotiated

Application : Industrial,comsumer Electrics,etc

Voltage : 300V

SP : 2602377

Delivery Time : 3-4 Weeks

Jacket : PVC

Model Number : UL2661

Temperature : 90℃

Packing : Packed In Reels

Payment Terms : T/T,L/C,Western Union

Certification : RoHS Reach

Place of Origin : China

Supply Ability : 100km per day

Insulation : PVC

Packaging Details : Packed in rolls or reels

MOQ : 1000m

Name : Industrial Flexible Cable

Brand Name : Shineplus

Contact Now

UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable with PVC Insulation and PVC Jacket

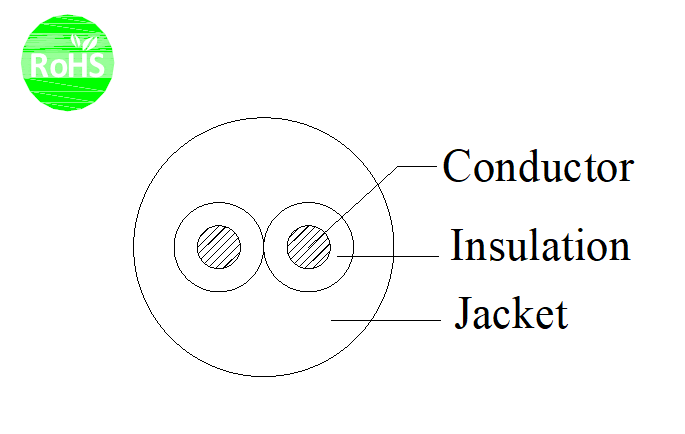

Construction
Conductor Bare copper stranded
Cross section 20AWG
Construction 26/0.16mm
Strand Dia. 0.94mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.50±0.10mm
Insulation colour 1.red 2.black
Assembly 2C×20AWG
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 4.60±0.20mm
Colour Black

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:121±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 90℃
Max.conductor DC resistance(20℃):34.6Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2661
RoHS

UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket

UL2661 2C×20AWG Bare Copper Stranded Industrial Flexible Cable With PVC Insulation / PVC Jacket
