UL2587 5C×8AWG Industrial Copper Stranded Cable , PVC Insulation PVC Jacket Cable 600V 90℃

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Voltage : 600V

SP : 1805461

Certification : RoHS Reach

Insulation : PVC

Model Number : UL2587

Conductor : Bare Copper Stranded

Price : To be negotiated

Temperature : 90℃

Supply Ability : 100km per day

Packing : Packed in Rolls or Reels

Brand Name : Shineplus

Name : Industrial Wire and Cable

Payment Terms : T/T,L/C,Western Union

Application : Industrial,comsumer Electrics,etc

Packaging Details : Packed in rolls or reels

Place of Origin : China

Jacket : PVC

Contact Now

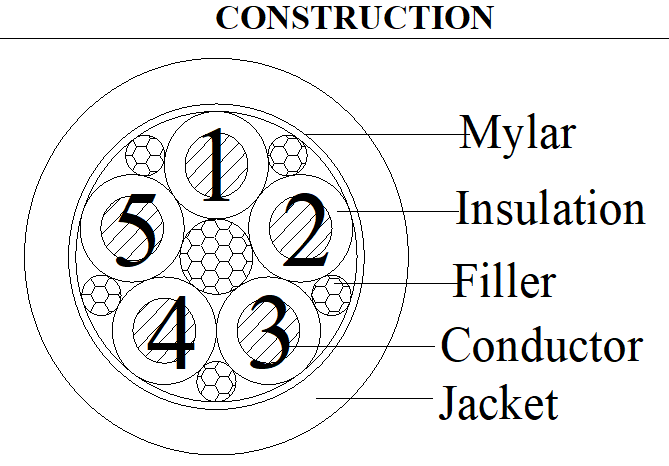

UL2587 5C×8AWG Industrial Cable Bare Copper Stranded with PVC Insulation and PVC Jacket 600V 90℃

ITEM 5C×8AWG(133/0.287B)
CONDUCTOR Material Bare copper stranded
Size 133/0.287mm
O.D.(Ref) 4.30mm
INSULATION Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.69mm
O.D. 5.80±0.20mm
CABLING Filler PP rope
Material Mylar
Assembly 5C×8AWG(133/0.287B)
JACKET Material PVC
Min.average thickness 1.14mm
Min.thickness at any point 0.92mm
O.D. 18.80±0.40m

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:90℃

Voltage rating:600V

Max.conductor DC resistance(20℃):2.144Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:121±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Deformation(121±2℃*1h,2kg):≤50%

Cold bend test(-20±2℃*4h):No crack

Heat shock test(121±2℃*1h):No crack

Flame test:VW-1 FT1
