7Cx28AWG Copper Wire Tinned Copper Stranded Cable With TPE Insulation / TPE Jacket 300V 105℃

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : 105℃

Certification : RoHS Reach

Jacket : TPE

Model Number : UL20327

Insulation : TPE

Supply Ability : 100km per day

SP : 2103677

Brand Name : Shineplus

Conductor : Tinned Copper Stranded

Payment Terms : T/T,L/C,Western Union

Packing : Packed in Rolls or Reels

Price : To be negotiated

Application : Industrial,comsumer Electrics,etc

Packaging Details : Packed in rolls or reels

Place of Origin : China

Voltage : 300V

Contact Now

UL20327 7Cx28AWG Industrial Cable Tinned Copper Stranded with TPE Insulation and TPE Jacket 300V 105℃

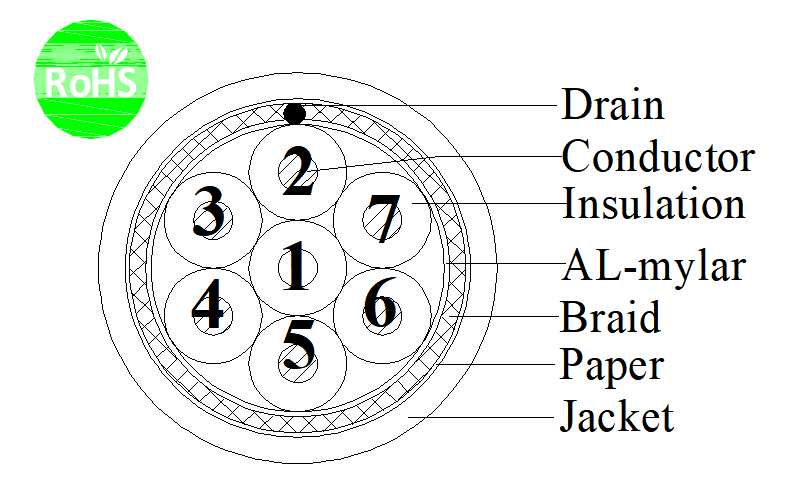

Construction
Conductor Tinned copper stranded
Cross section 28AWG
Construction 7/0.127±0.008mm
Strand Dia. 0.38mm
Insulation TPE
Nom.Thickness 0.20mm
Min.Thickness 0.18mm
Insulation Dia. 0.80±0.05mm
Insulation colour 1.black 2.brown 3.red 4.orange 5.yellow 6.green 7.blue
Filler None
Material Al-mylar(foil face out),≥25%
Drain wire Tinned copper stranded ,7/0.127±0.008mm
Assembly 7C×28AWG+AE
Braid Tinned copper,16/6/0.10±0.008mm,≥85%
Material Paper,≥25%
Jacket TPE
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 5.00±0.20mm
Colour black(BK001)

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):239Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥8.27MPa

Elongation:≥200%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

Cold bend(-40±2℃*4H):No crack

Flame test:VW-1

7Cx28AWG Copper Wire Tinned Copper Stranded Cable With TPE Insulation / TPE Jacket 300V 105℃
