3C×12AWG+3C×22AWG Bared Copper Stranded Cable With TPE Insulation / TPE Jacket

  • 1
  • 2

MOQ : 1000m

Insulation : TPE

Model Number : UL EVJE

SP : 1602472

Price : To be negotiated

Packing : Packed in rolls or reels

Payment Terms : T/T,L/C,Western Union

Delivery Time : 3-4 Weeks

Application : EV Charging

Temperature : -40~105℃

Name : Copper Stranded Cable

Certification : RoHS Reach

Place of Origin : China

Supply Ability : 100km per day

Brand Name : Shineplus

Jacket : TPE

Conductor : Bare Copper Stranded

Packaging Details : Packed in rolls or reels

Voltage : 300V

Contact Now

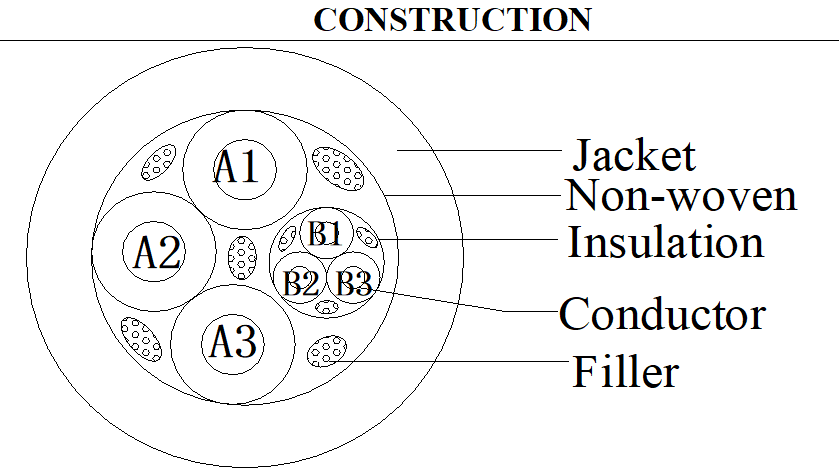

UL EVJE 3C×12AWG+3C×22AWG Bared Copper Stranded EV Charging Cable with TPE Insulation and TPE Jacket

ITEM A:3C×12AWG B: 3C×22AWG
CONDUCTOR Material Bared Copper Stranded
Size 65/0.254±0.008mm 17/0.16±0.008mm
O.D.(Ref) 2.40mm 0.76mm
INSULATION Material TPE TPE
Min.average thickness 0.76mm 0.76mm
Min.thickness at any point 0.68mm 0.68mm
O.D. 4.10±0.20mm 2.40±0.10mm
CABLING-1 Material / Non-woven
Fillers / Optional
Assembly / 3C×22AWG+W
CABLING-2 Material Non-woven
Fillers PP rope (Optional)
Assembly 3C×12AWG+3C×22AWG
JACKET Material TPE
Min.average thickness 1.14mm
Min.thickness at any point 0.91mm
O.D. 13.50±0.40mm

Product Description
Application:EV Charging

This Product is applicable for all kinds of electric vehicles,charging piles, power station, charging station.


Product character:
Tensile strength:≥8.3MPa

Elongation:≥200%
Aged condition:136±1℃×168h
Percent of original tensile strength:±75%
Percent of original elongation: ±75%
VW-1

Technical data
Rated voltage:300V
Rated Temperature: -40-105℃
Max.conductor DC resistance(20℃):A:5.58Ω/km B:56.8Ω/km
Dielectric Strength AC:2.0kV/5min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant

3C×12AWG+3C×22AWG Bared Copper Stranded Cable With TPE Insulation / TPE Jacket
