CQC 3C×2.5mm2+2C×0.75mm2 EV Charging Cable Bared Copper Stranded 450V 750V AC

  • 1
  • 2

Model Number : CQC

Conductor : Bare Copper Stranded

Price : To be negotiated

Temperature : 90℃

MOQ : 1000m

Delivery Time : 3-4 Weeks

Voltage : 450/750V AC

SP : 2002790

Supply Ability : 100km per day

Packing : Packed in rolls or reels

Certification : RoHS Reach

Insulation : TPE

Brand Name : Shineplus

Name : EV Charging Cable

Payment Terms : T/T,L/C,Western Union

Application : EV Charging

Packaging Details : Packed in rolls or reels

Place of Origin : China

Jacket : TPE

Contact Now

CQC 3C×2.5mm2+2C×0.75mm2 EV Charging Cable Bared Copper Stranded with TPE Insulation and TPE Jacket 450/750V AC

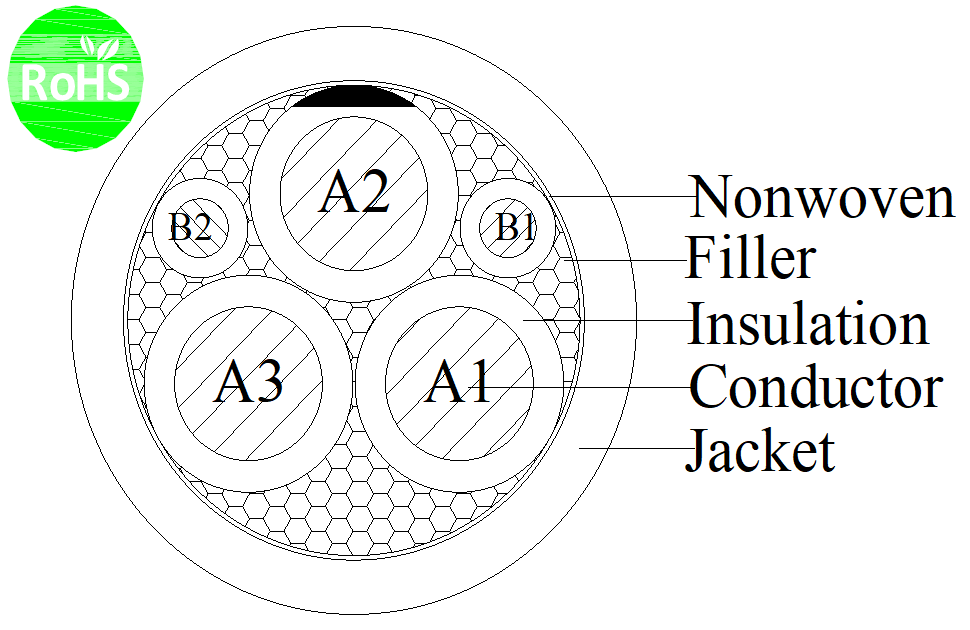

Construction
Conductor Bare copper stranded
Cross section A : 3C×2.5mm2 B : 2C×0.75mm2
Construction 136/0.15mm+Tinsel+ Kevlar 40/0.15mm+Tinsel+ Kevlar
Strand Dia. 2.15mm 1.30mm
Insulation TPE(75±3A)
Nom.Thickness 0.80mm 0.50mm
Min.Thickness 0.62mm 0.35mm
Insulation Dia. 3.80±0.20mm 2.50±0.10mm
Insulation colour A1.yellow/green A2.blue A3.brown B1.red B2.gray
Filler PP rope
Material Non-woven
Assembly 3Cx2.5mm2+2Cx0.75mm2+W
Jacket TPE(75±3A)
Nom.Thickness 1.90mm
Min.Thickness 1.51mm
Outer Dia. 12.90±0.30mm
Colour black

Product Description
Application:EV Charging

This Product is applicable for all kinds of electric vehicles,charging piles, power station, charging station.


Product character:
Tensile strength:≥10.03MPa

Elongation:≥300%
Aged condition:135±1℃×168h
Percent of original tensile strength:±30%
Percent of original elongation: ±30%

High temperature and pressure:(90±2℃×4h) ≤50%

Flame test:GB/T 18380.12-2008


Technical data
Rated voltage:450/750V AC
Rated Temperature:90℃
Max.conductor DC resistance(20℃):A:7.98Ω/km B: 26Ω/km
Dielectric Strength AC: A: AC 3.5kV/15min B: AC 1.5kV/15min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant

CQC 3C×2.5mm2+2C×0.75mm2 EV Charging Cable Bared Copper Stranded 450V 750V AC
