3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V

Name: 3C28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V
Brand: Shineplus
Price: 1 USD

Buy cheap 3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V product

Conductor : Tinned Copper Stranded

MOQ : 1000m

Application : Medical Device、Medical Wire Harness

Voltage : 300V

SP : 2001534

Model Number : NOUL

Temperature : 80℃

Packing : Packed in rolls or reels

Brand Name : Shineplus

Name : Medical Device Cable

Certification : RoHS Reach

Packaging Details : Packed in rolls or reels

Insulation : FEP

Supply Ability : 100km per day

Delivery Time : 3-4 Weeks

Payment Terms : T/T,L/C,Western Union

Jacket : PVC

Place of Origin : China

Price : To be negotiated

Contact Now

3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V

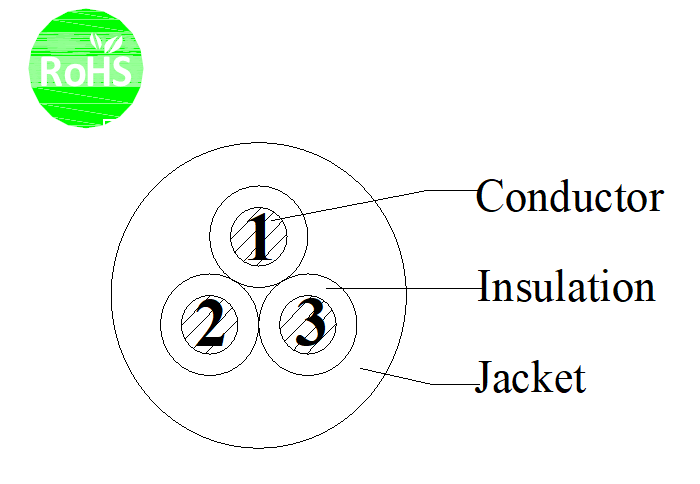

Construction

Conductor			Tinned Copper Stranded
Cross section			28AWG
Construction			19/0.08mm
Strand Dia.			0.40mm(Ref.)
Insulation			FEP
Nom.Thickness			0.30mm
Min.Thickness			0.24mm
Insulation Dia.			1.00±0.10mm
Insulation colour			1.white,2.green,3.red
Assembly			3C×28AWG
Jacket			PVC
Nom.Thickness			0.40mm
Min.Thickness			0.32mm
O.D.			3.05±0.15mm
Colour			black

Application: Medical wire harness,Medical Device

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):239Ω/km
Dielectric Strength AC:5.0kV/1min

Biocompatible and environment friendly

3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V

Product Tags:

3C×28AWG Medical Device Cable

Tinned Copper Stranded Medical Device Cable

FEP Insulation Cable 300V

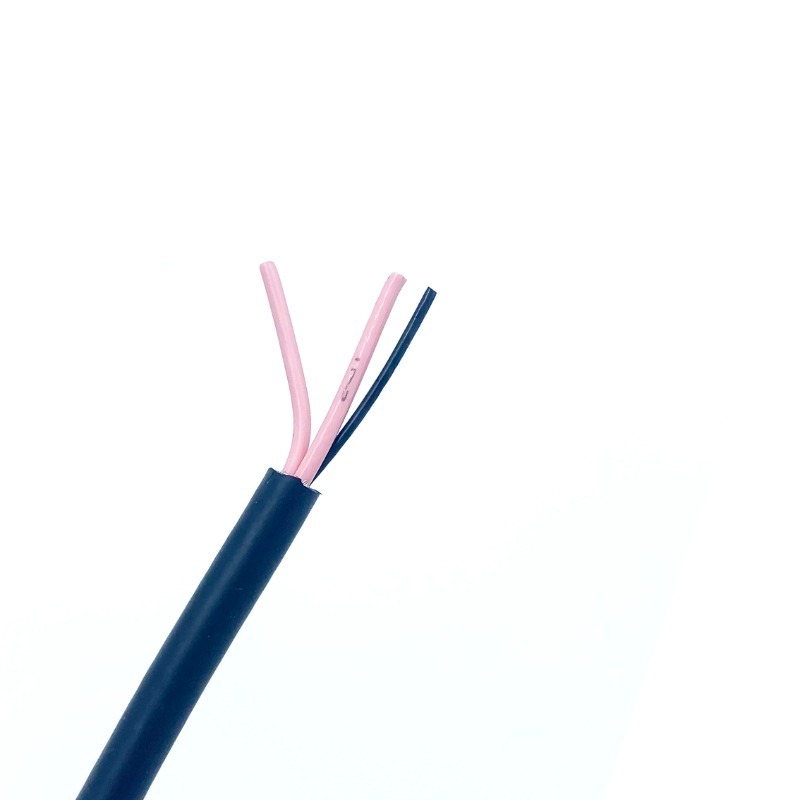

3C×28AWG Tinned Copper Stranded Medical Device Cable With FEP Insulation PVC Jacket 300V Images
