UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded With PVC Insulation / TPU Jacket 300V

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Voltage : 300V

SP : 1804042

Certification : RoHS Reach

Insulation : PVC

Model Number : UL20549

Conductor : Bare Copper Stranded

Supply Ability : 100km per day

Packing : Packed in Rolls or Reels

Brand Name : Shineplus

Name : Robot Wire and Cable

Payment Terms : T/T,L/C,Western Union

Application : Robot Manipulator

Price : To be negotiated

Temperature : -40~80℃

Place of Origin : China

Jacket : TPU

Packaging Details : Packed in rolls or reels

Contact Now

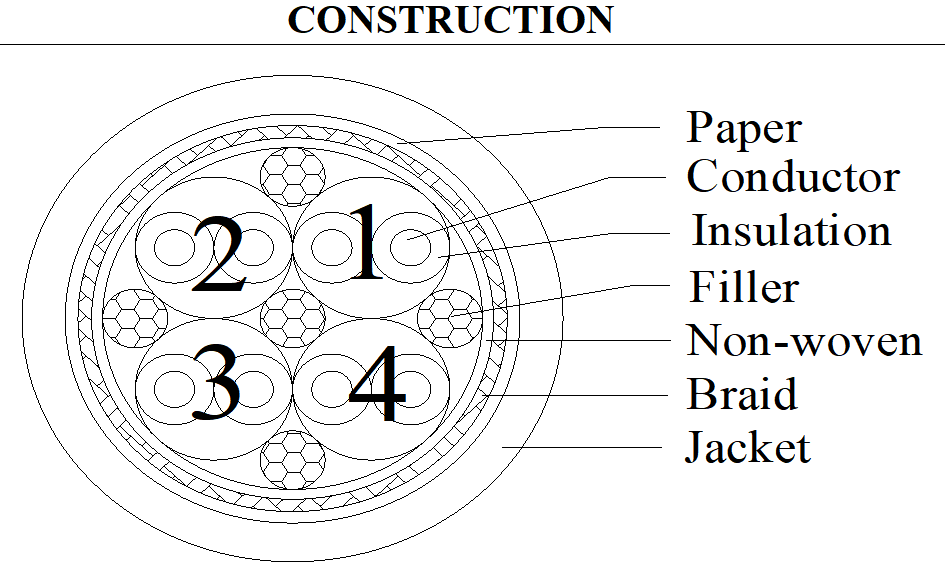

UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded with PVC Insulation and TPU Jacket 300V

ITEM 4P×0.34mm2(65/0.08T)+WB
CONDUCTOR Material Tinned copper stranded
Size 65/0.08mm+nylon
O.D.(Ref) 0.76mm
INSULATION Material PVC
Min.average thickness 0.38mm
Min.thickness at any point 0.33mm
O.D. 1.60±0.10mm
TWIST O.D. 3.20mm
CABLING Filler Cotton
Material Non-woven tape , overlapping: 25% min.
BRAID Material Tinned copper
Size 16/12/0.10mm , 80﹪ Min.
SEPARATOR Material Paper , overlapping : 25% min.
JACKET Material TPU
Min.average thickness 1.00mm
Min.thickness at any point 0.80mm
O.D. 9.30±0.30mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):59.4Ω/km

Dielectric Strength AC:2.0kV/1min

Voltage withstand test:

Core-Core:AC 2.0kV/1min

Core-Shield:AC 1.5kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Oil Resistant Condition(IRM 902): 100℃×24hrs
Tensile strength:≥60% of original
Elongation(%):≥60% of original

Chain test: 20times/minute, distance:1.0m,
bending radius:100mm ≥2 million times
Flame test : VW-1 ,FT1
