2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V

  • 1
  • 2

Payment Terms : T/T,L/C,Western Union

Conductor : Bare Copper Stranded

Application : Internal wires of industrial control equipment and robot manipulators

Name : Robot Wire and Cable

Packing : Packed in rolls or reels

Temperature : -40~80℃

Packaging Details : Packed in rolls or reels

Voltage : 300V/500V

SP : 2003813

Model Number : NOUL

Delivery Time : 3-4 Weeks

MOQ : 1000m

Brand Name : Shineplus

Insulation : PVC

Place of Origin : China

Price : To be negotiated

Jacket : PVC

Certification : RoHS Reach

Supply Ability : 100km per day

Contact Now

2C×0.5mm2+W Bare copper stranded Robot Cable with PVC Jacket and PVC Insulation

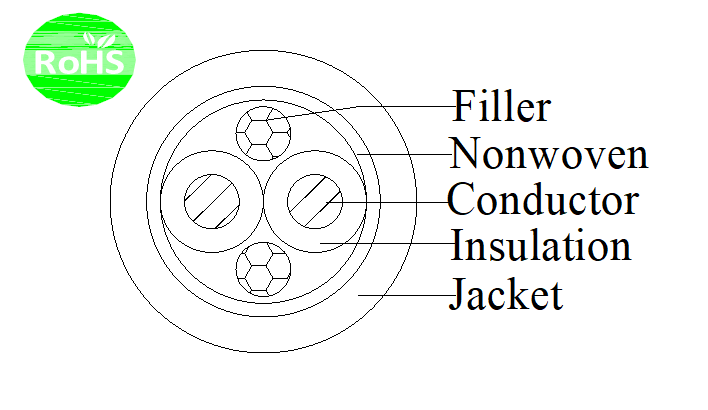

Construction
2C×0.5mm2+W
Conductor Bare copper stranded
Cross section 0.5mm2
Construction 65/0.10mm
Strand Dia. 0.93mm
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 1.80±0.10mm
Insulation colour 1~2.black printing the number of 1~2
Filler Optional
Material Nonwoven tape,25% min.
Assembly 2C×0.50mm2+W
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 5.40±0.20mm
Colour Gray Ral 7001

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strerngth applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~80℃

Voltage rating:300V/500V

Max.conductor DC resistance(20℃):39Ω/km

Dielectric Strength AC:4.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Oil resistance(IRM902) Reference standard:UL758 100℃/96h

Torsion test ≧5000 cycles@≧+5℃,±150°,1rotation/min

Chain test:20times/min bending radius:15×OD ,distance:1m,≥1 million times

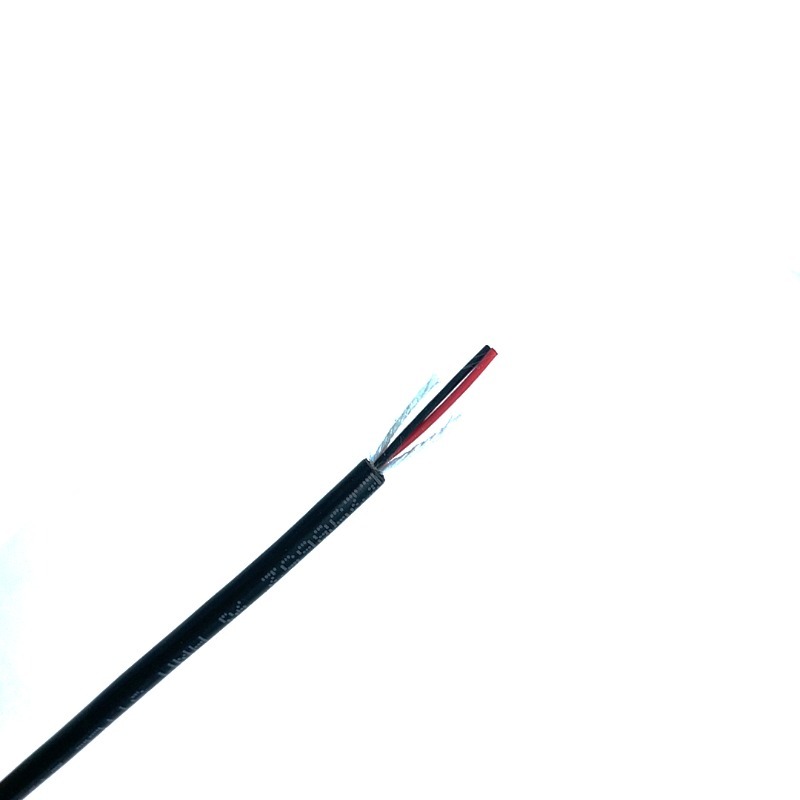

2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V

2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V
