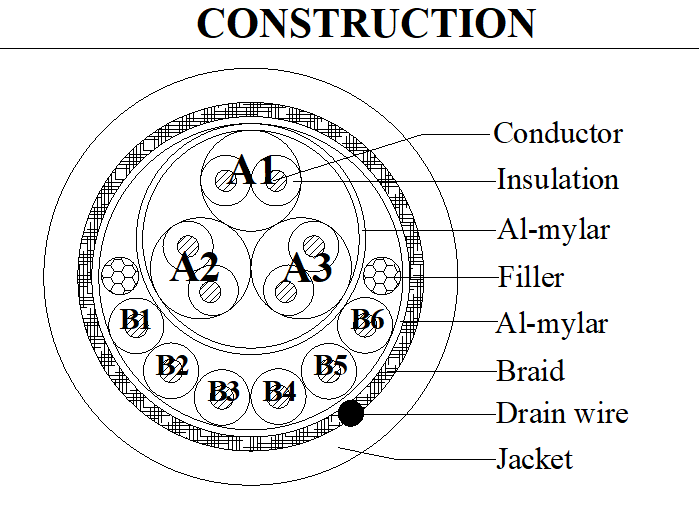

UL2464 3P×24AWG+6C×24AWG Robot Cable Bare Copper Stranded with HDPE/SR-PVC Insulation and PVC Jacket 300V
| ITEM |
A : 3P×24AWG |
B : 6C×24AWG |
| CONDUCTOR |
Material |
Bare copper stranded |
| Size |
19/0.127±0.008mm |
19/0.127±0.008mm |
| O.D.(Ref) |
0.64mm |
0.64mm |
| INSULATION |
Material |
HDPE |
SR-PVC |
| Min.average thickness |
0.23mm |
0.23mm |
| Min.thickness at any point |
0.18mm |
0.18mm |
| O.D. |
1.20±0.08mm |
1.15±0.05mm |
| TWISTED |
O.D.(Ref) |
2.40mm |
/ |
| CABLING-1 |
Material |
Al-mylar(face in) |
/ |
| Assembly |
3P×24AWG |
/ |
| CABLING |
Filler |
PP rope |
| Material |
Al-mylar(face out) |
| Assembly |
(3P×24AWG+A)+6C×24AWG |
| DRAIN |
Material |
Tinned copper stranded |
| Size |
19/0.127±0.008mm |
| BRAID |
Material |
Tinned copper |
| Size |
16/9/0.10mm(65% min.) |
| JACKET |
Material |
PVC |
| Min.average thickness |
0.76mm |
| Min.thickness at any point |
0.61mm |
| O.D. |
8.00±0.25mm |
Application:For internal wires of industrial control equipment and robot manipulators
This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.
Electric Performance:
Rated Temperature:-40~80℃
Voltage rating:300V
Max.conductor DC resistance(20℃):87.6Ω/km
Dielectric Strength AC:1.0kV/1min
Impedance : 100±15Ω (A)
Rated current: 2.0A
Insulation Resistance(at 20℃):100MΩ*km Min.
Mechanical Performance:
Tensile strength:≥10.3MPa
Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength:≥70%
Percent of original elongation:≥65%
Bending test: ±90°,Speed:30cycles/min,Weight:450g,
Bending radius:50.8mm,80k
Twist test: 15K (Bending angle:±360°,Speed:30cycles/min,Weight:150g)
